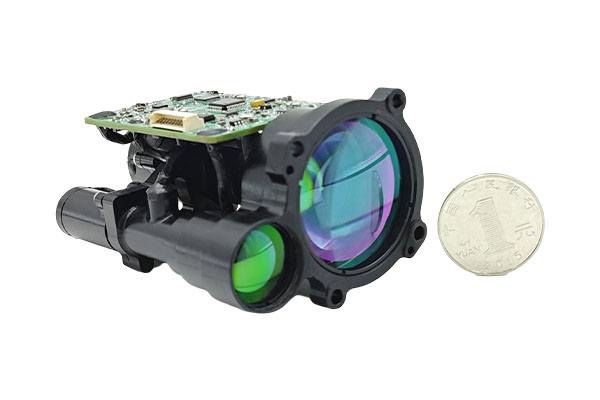

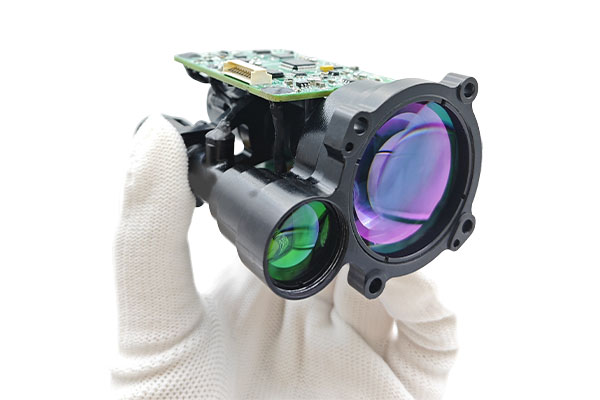

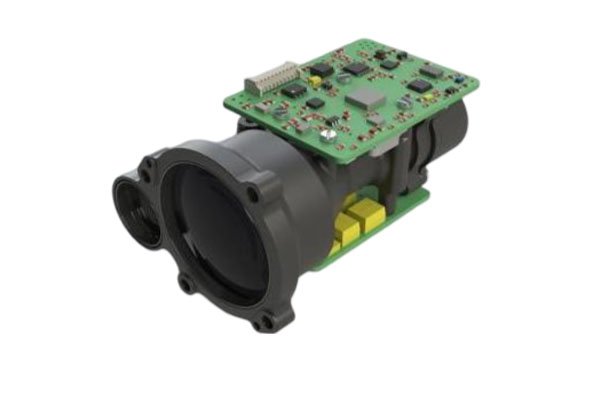

1535nm Erbium Glass Laser Rangefinder DYC9002B

DYC9002B
Central wavelength (nm): 1535
Range (m): ≥12200 (typical large target reference value)
≥9200 (2.3×4.6 standard target plate or equivalent target)
Blind area of ranging (m): ≤20
Ranging accuracy (m): ±2 (optional ±1)
Accuracy: ≥98%
Working frequency (Hz): single, 1, 5
Communication interface: RS422/TTL
Power supply voltage (V): 5~14
Standby power consumption (W): ≤0.001
Installation method: front face installation
Working temperature (℃): -40~60
Storage temperature (℃): -55~70
Special design: with power on and off control function, extremely low standby power consumption
×
